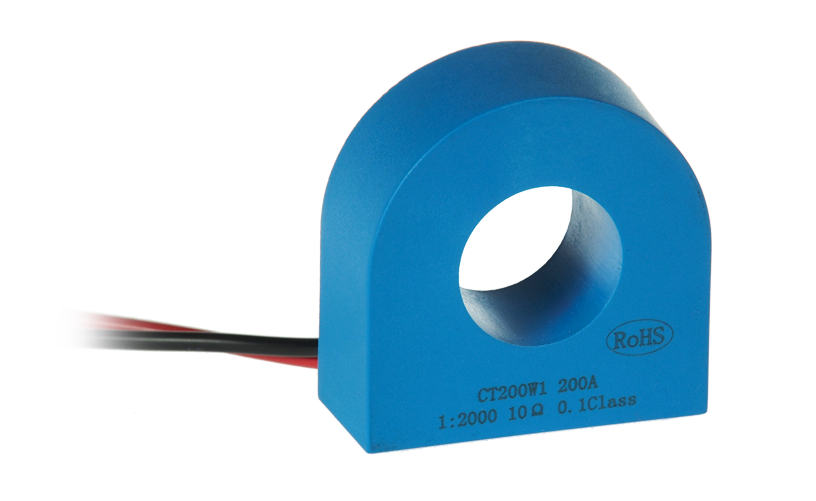

200A Current Transformer (Solid Core)

  • Solid core current transformer for the most demanding accuracy.
  • For circuits up to 200A.
  • Connects JBox to CircuitMeter products.

Product Description

Details

The CurrentTransformer (200A-Solid) is used for circuits up to 200A.

This current transformer meets three key criterias:

  1. high accuracy
  2. industry approvals
  3. low cost

This series of solid core current transformers is simple and designed for connection to the JBox products from CircuitMeter.  They will meet the most demanding accuracy requirements.  Installing these CTs requires a shutdown of the circuit involved.

Use a split-core CT when you are unable to shut down a circuit.

Specifications

Electrical Specifications1

Maximum Current 200A
Output 50mA
Accuracy Class 0.1
Type Solid Core

Safety Specifications

Measurement Category CAT III, 600VAC
RoHS Compliant
Safety Standards UL 61010-1
CAN/CSA C22.2 31010-1
EN 61010-1, IEC 61010-2-032

Mechanical & Dimensions

CaseMaterial UL 94V-0
Secondary Wire 1.5M (5.0 ft)
18AWG
UL 1015 (TEW)
600V, 105C
Operating Temperature 5 to 40C
Storage Temperature -20 to 85C
Dimension 50 x 50 mm / 1.97 x 1.97 in
Height 21 mm / 0.83 in
Centre Hole 24 mm / 0.94 in
Notes

  1 For use on insulated conductors only
  2 Safety Standards Pending Approval
