Product Description

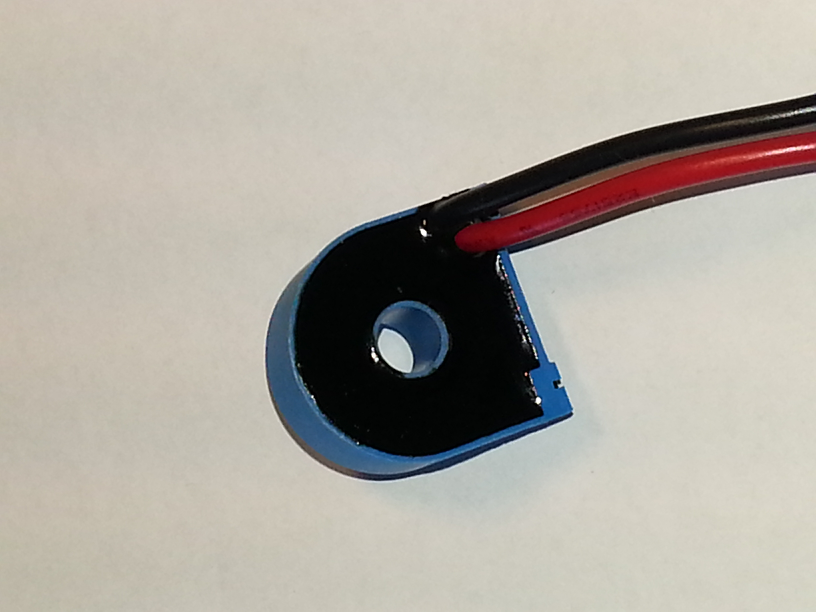

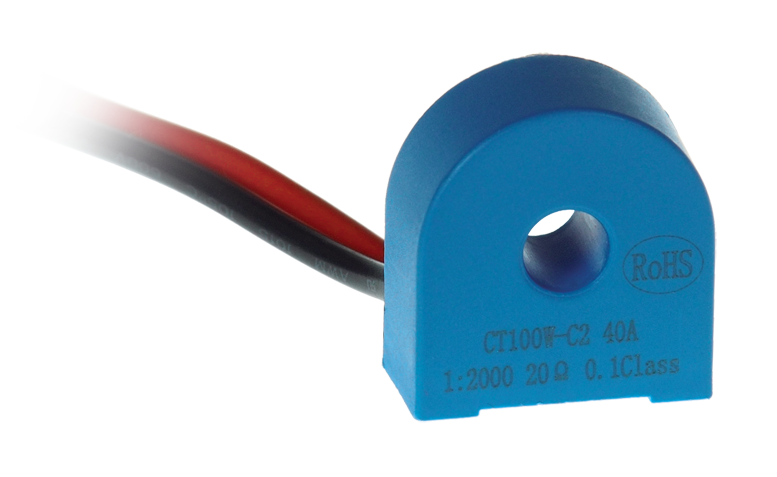

The CurrentTransformer (40A-Solid) is used for circuits up to 40A.
This current transformer meets three key criterias:
- high accuracy
- industry approvals
- low cost
This series of solid core current transformers is simple and designed for connection to the JBox products from CircuitMeter. They will meet the most demanding accuracy requirements. Installing these CTs requires a shutdown of the circuit involved.
Use a split-core CT when you are unable to shut down a circuit.
Electrical Specifications1
| Maximum Current | 40A |
| Output | 20mA |
| Accuracy Class | 0.1 |
| Type | Solid Core |
Safety Specifications
| Measurement Category | CAT III, 600VAC |
| RoHS | Compliant |
| Safety Standards | UL 61010-1 CAN/CSA C22.2 31010-1 EN 61010-1, IEC 61010-2-032 |
Mechanical & Dimensions
| CaseMaterial | UL 94V-0 |
| Secondary Wire | 1.5M (5.0 ft) 18AWG UL 1015 (TEW) 600V, 105C |
| Operating Temperature | 5 to 40C |
| Storage Temperature | -20 to 85C |
| Dimension | 25 x 24 mm / 0.98 x 0.95 in |
| Height | 11 mm / 0.43 in |
| Centre Hole | 6.5 mm / 0.26 in |
Notes
The CT040A is standard with the WebMeter36F Kit
1 For use on insulated conductors only
