Product Description

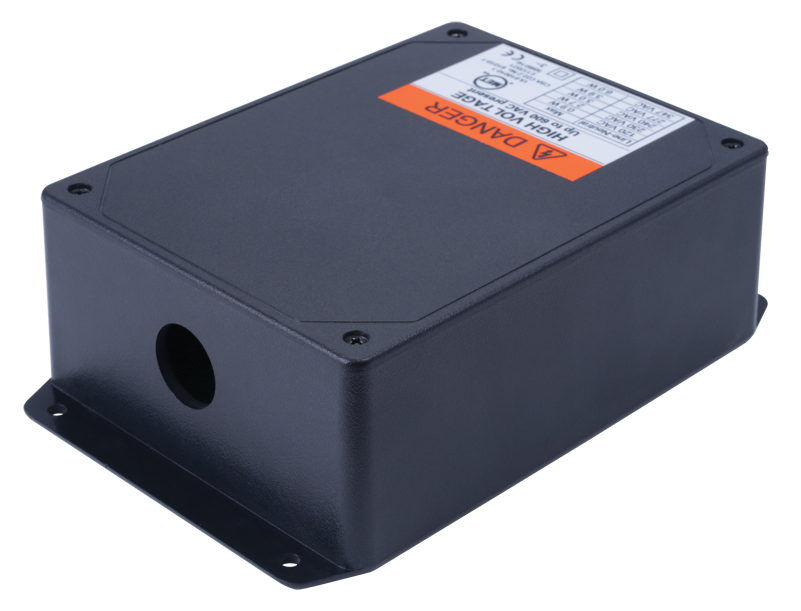

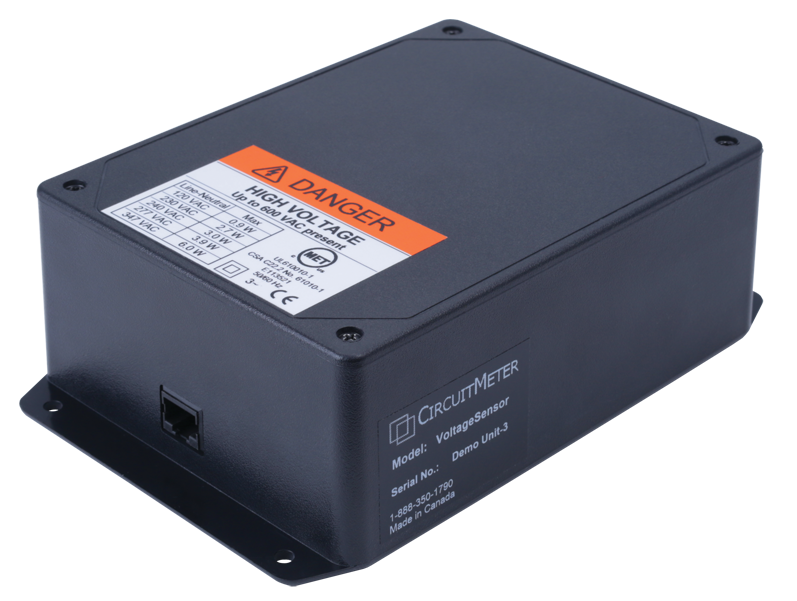

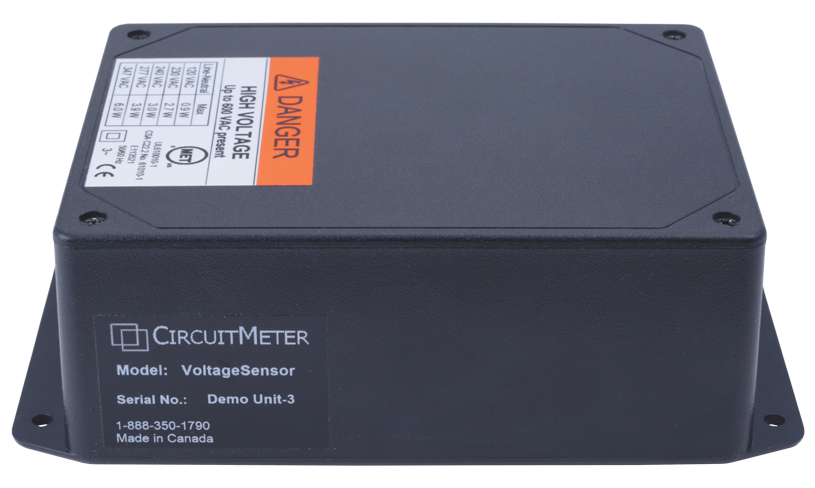

The VoltageSensor™ takes the voltage readings and provides the data to the WebMeter36F™. It is essentially a Class 1 to Class 2 voltage converter unit that converts the high voltage (up to 600VAC) found in electrical breaker panels to a safe milli-volt signal. These lower voltage levels are presented to the WebMeter36F™ using a simple and easy connection via the built in RJ45 jack.
The enclosure is a flame retardant ABS enclosure with a UL94V-5VA rating. The CM-VoltageSensor™ has UL, ULC, and IEC safety certifications for North America and Europe.
Monitored AC Power System Types (Input)
| Frequency | 50-60 Hz |
| 3 phase 4 wire | 208Y/120 V |
| 3 phase 4 wire | 400Y/230 V |
| 3 phase 4 wire | 415Y/240 V |
| 3 phase 4 wire | 480Y/277 V |
| 3 phase 4 wire | 600Y/347 V |
| 3 phase 4 wire delta | 120/208/240 V |
| 3 phase 4 wire delta | 240/415/480 V |
| 3 phase 3 wire installations | up to 600 V (no neutral) |
| 1 phase 3 wire | 120V/240V (a.k.a. split phaseal) |
| 1 phase 2 wire installations | up to 347 V with neutral |
| 1 phase 2 wire | 208 V (no neutral) |
| 1 phase 2 wire | 240 V (no neutral) |
Input
| Volts | 347/600 VAC Maximum 4 position barrier block, 12-14 AWG |
| Watts | 2.0 W max per element at 347/600 VAC |
Output
| Voltage Output | 7 VAC RMS max (when not connected to WebMeter36F) 0.3 VAC RMS max (when connected to WebMeter36F) |
| Current Output | 6 mA max per element |
| Connector | RJ45 8P8C (T-568B 3 pairs used) |
Mechanical & Dimensions
| Weight | 0.38 kg (0.84 lbs) |
| Size | 18.5 cm / 7.29 in (L) 12.0 cm / 4.72 in (W) 5.72 cm / 2.25 in (H) |
Safety Certifications
| Safety Standards | UL 6100101 CAN/CSA C22.2 No. 61010-1 CE |
Environmental
| Operating Temperature | 4 to +40 C |
| Storage Temperature | -17 to +80 C |
| Humidity | 10 to 90% non-condensing |
| Enclosure | UL94V-5VA |
