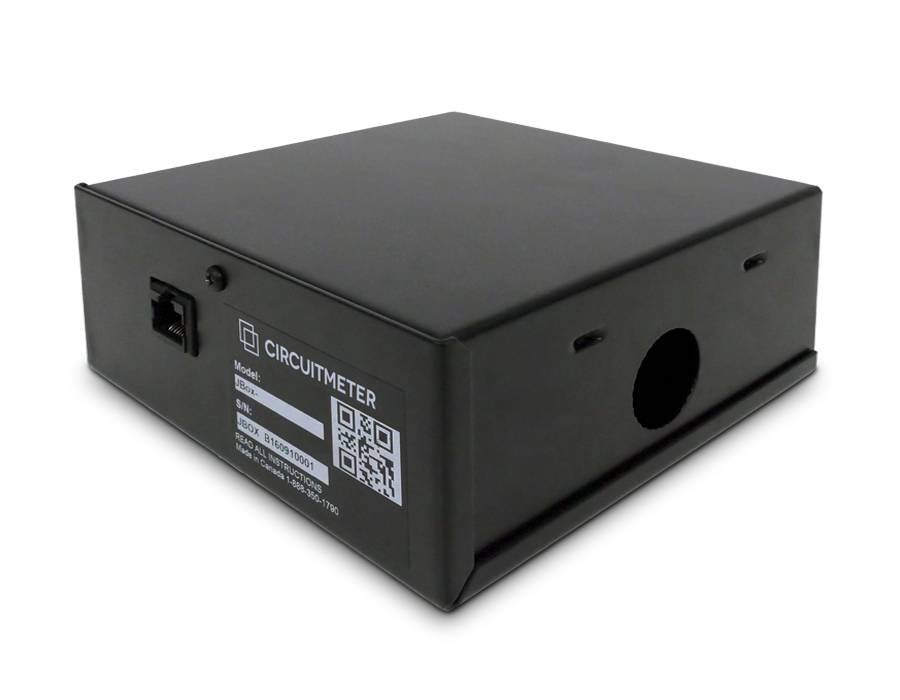

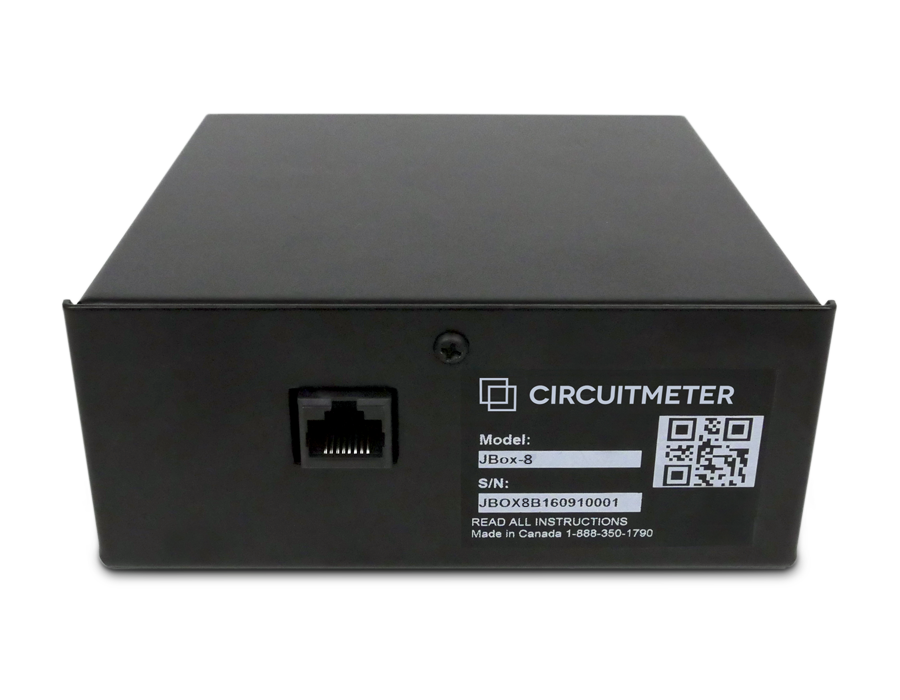

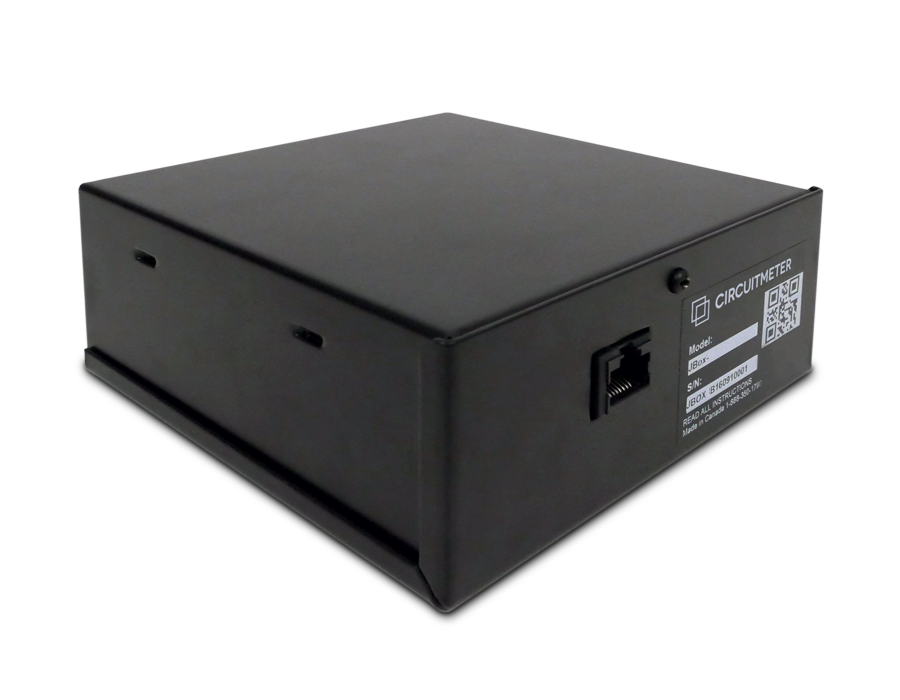

Product Description
CurrentTransformer wiring that originates from a breaker panel is considered a Class 1 circuit by both the National Electrical Code (NEC) and the Canadian Electrical Code (CEC).
JBoxes provide a convenient way to isolate CT wiring from class 2 devices such as CircuitMeter’s WebMeter36F™ product. Corrections to phase error and gain errors are performed by the WebMeter36F™.
This enables a flexible installation process utilizing standard CAT5 cables. The JBox-8 is an 8 port configuration allowing a single JBox-8 to connect up to 8 CTs to a WebMeter36F™.
Use any combination of JBox-4’s and JBox-8’s to connect a total of up to 36 CTs to a WebMeter36F™. Use standard Cat5e cable to connect to a WebMeter36F™.
Supported Current Transformers from CircuitMeter
| Solid Core | CT040, CT100, CT200 |
| Split Core | SP040, SP100, SP200, SP400, SP600, SP800 |
Device Specifications
| Isolation Input to Output | 2.5 KV (hi-pot test) |
| Frequency | 50/60 Hz |
Inputs
| Supports | 8 Current Transformers |
| Connector Type | Spring Cage |
| CT Current | 20 mA |
Outputs
| RJ45 (T-568B) | 2 |
| CT Current | 10 mA |
Mechanical & Dimensions
| Weight | 0.36 kg (0.79 lbs) |
| Size | 18.5 cm / 7.29 in (L) 12.0 cm / 4.72 in (W) 5.72 cm / 2.25 in (H) |
Safety Certifications
| Safety Standards1 | UL 610010-1 CAN/CSA C22.2 No. 61010-1 CE |
Environmental
| Operating Temperature | 4 to +40 C |
| Storage Temperature | -17 to +80 C |
| Humidity | 10 to 90% non-condensing |
| Enclosure | UL94V-5VA |
** Subject to Change Without Notice **
