Product Description

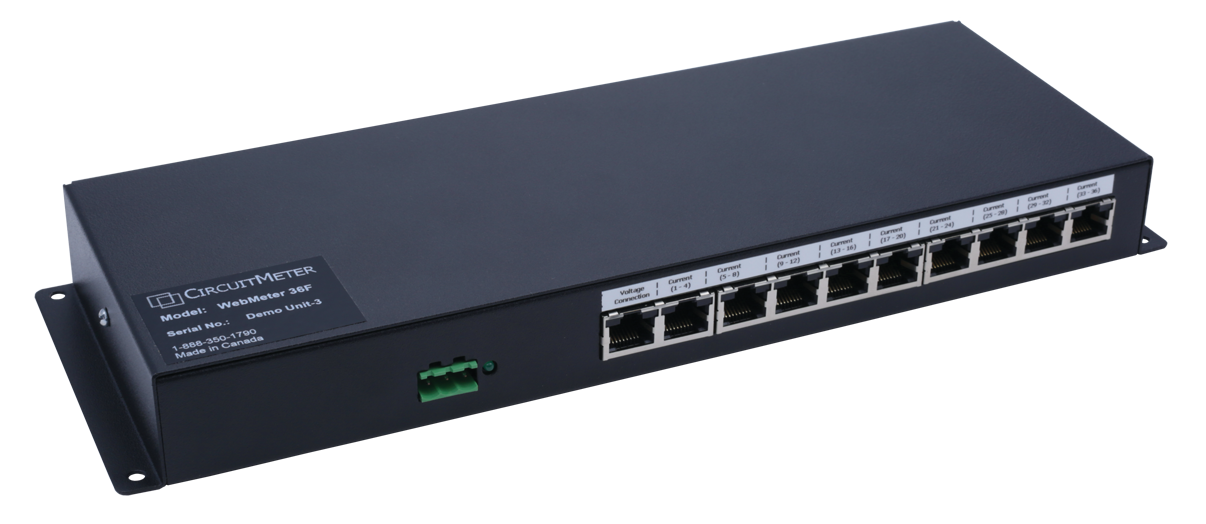

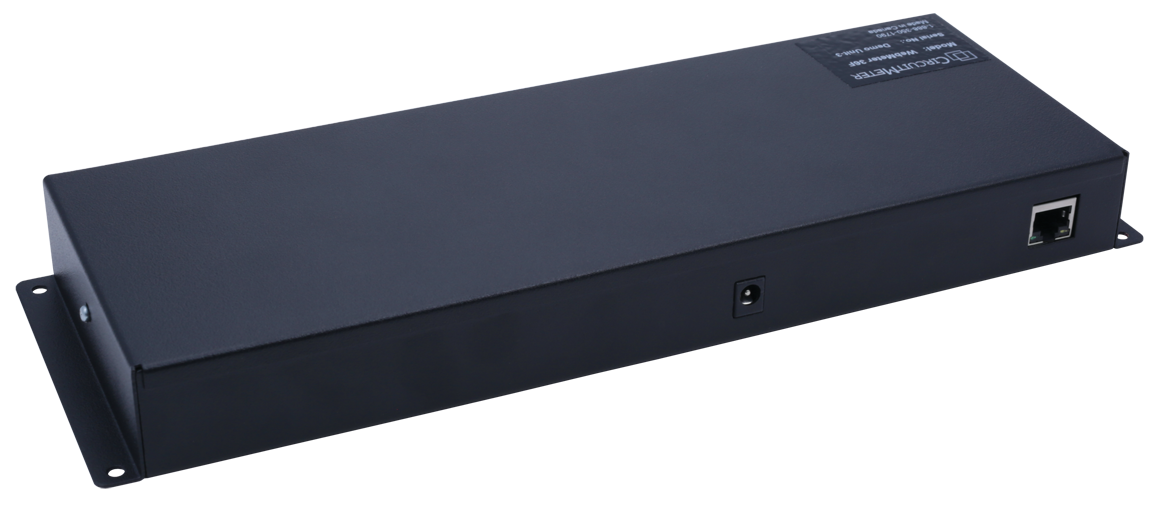

WebMeter36F™ — This meter gathers real-time energy data and monitors up to 36 electrical circuits. It is accurate, affordable and easy to install. Easily configurable to accommodate single, dual, and three phase equipment. Using the voltage and current data collected, standard energy information is calculated and sent to the cloud based CircuitMonitoring™ system, where any authorized user can view the detailed energy data, graphic visualizations and energy analytics using historical and real-time data.
Add a Voltage Sensor, JBoxes and Current Transformers for a complete installation.
Key Specifications
| Power Supply | 6VDC, 700 mA includes a 2000 mA 110 VAC wall adapter |
| Accuracy | 2% of reading at 25oC PF>=0.5 for most parameters |
| Sample Rate | 2750 sps / element |
| Data Update Rate | 1 update every 10 seconds to CircuitMeter Monitoring Service |
| Measurement Type | True RMS |
Inputs
| Voltage Elements | 1 – 3 phase isolated from mains by CM-VoltageSensor RJ45 connectors CAT5 cable (T-568B) up to 2M (6 ft) 50 / 60 Hz |
| Current Elements | up to 36 CTs isolated from breaker panel by JBox RJ45 connectors CAT5 cables(T568B) up to 30M(100 ft) with configuration Automatic polarity correction at installation |
| Compatible with CircuitMeter current transformers | CT040, CT100, CT200 SP040, SP100, SP200, SP400, SP600, SP800, SP1200, SP1500, SP2000, SP4000, SP6000 |
Outputs
| Ethernet Port | 10/100 Mbps |
| Diagnostic LED |
Mechanical & Dimensions
| Weight | 0.75 kg (1.65 lbs) |
| Size | 31.75 cm / 12.5 in (L) 10.16 cm / 4.0 in (W) 5.08 cm / 2.0 in (H) |
Environmental
| Operating Temp | 0° to 70° C |
| Storage Temp | -17° to 80° C |
| Humidity Range | <95% RH (non-condensing) |
| Enclosure | Metal |
Measured Data Points that are accessed by CircuitMonitoringTM
| Data Points | 334 per Update |
| Device Data Points | Internal Temperature |
Data Points per Voltage Element (x3)
VoltsA Avg / interval
VoltsB Avg / interval
VoltsC Avg / interval
Data Points per Current Element (x36)
Amps Avg / interval
AmpsMax / interval
ApparentPower
Real Power (Bi-directional)
Apparent Power
Reactive Power (Bi-directional)
Power Factor (Bi-directional)
Import Energy – Watt Hours1
Export Energy – Watt Hours1
Notes
1 Aggregated to KWh by CircuitMeter Monitoring service
